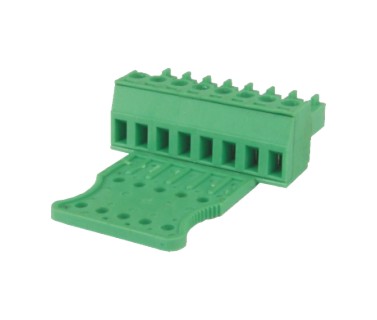

型号：TJ 3.5/3.81-with handle
产品描述 | |
| 型号/Part No.: | TJ 3.5/3.81-with handle |
| 间距/Pitch: | 3.5 / 3.81 |
| 位数/Poles: | 2P-24P |
| 料号/Number: | TJxxx1540000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus VDE |
| 额定电压/Voltage rating: | 300V 300V |
| 额定电流/Current rating: | 10A 10.5A |
| 适用线经/Wire range: | 1.5mm2 |
| 单芯线经（AWG）/Solid wire(AWG): | 16-28 |
| 多芯线经（AWG）/Stranded wire(AWG): | 16-28 |
| 最大锁紧扭力/Torque: | 3.0 Lb-In 0.2N.m |
| 螺丝规格/Screw: | M2 |
| 剥线长度/Wire strip length: | 6~7mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV 2.5KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: |
产品料号编码原则-How to order
|
|
|
- Solid Block
02 2 contacts
03 3 contacts
... ...
24 24 contacts - 1 3.5/.138"
3 3.81/.15" - 0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp - 0 Black
5 Green
6 Blue
8 Grey - 4 w/o flange
(with handle) - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper Alloy
H RoHS compliant
(lead<1000ppm)
In copper Alloy
