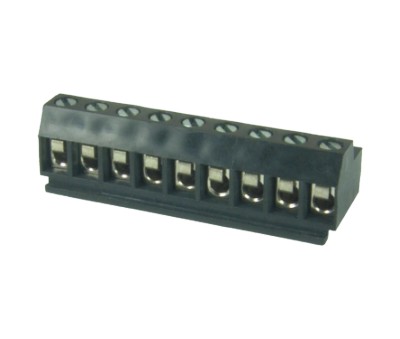

TY5.0 - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus TUV
额定电压/Voltage rating:	300V 300V
额定电流/Current rating:	10A 10A
适用线经/Wire range:	0.2~2.5mm²
单芯线经（AWG）/Solid wire(AWG):	14-26
多芯线经（AWG）/Stranded wire(AWG):	14-26
最大锁紧扭力/Torque:	3.5 Lb-In 0.4N.m
螺丝规格/Screw:	M2.6
剥线长度/Wire strip length:	6~7mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV 2.5KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Solid Block
02 2 contacts
03 3 contacts
... ...
24 24 contacts
(pitch:5.0)
12 12 contacts
(pitch:10.0)
0 5.0/.197"
1 10.00/.394"
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp
0 Black
5 Green
6 Blue
8 Grey
0 Two beam contact
(with male ¢1.0)
1 Six finger contact
(with male ¢1.0)
2 With flat jumper
(Two beam contact)
3 With round jumper
(Two beam contact)
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper Alloy

H RoHS compliant
(lead<1000ppm)
In copper Alloy
