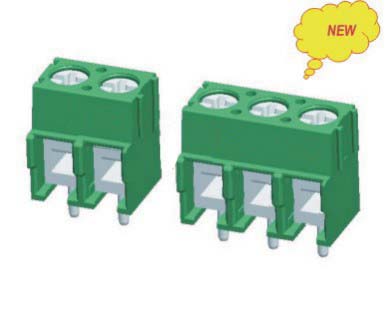

KY 5.0 180D (Square hole) - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus CQC
额定电压/Voltage rating:	300V 250V
额定电流/Current rating:	15A 24A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	12-24AWG 0.2mm²-2.5mm²
多芯线经（AWG）/Stranded wire(AWG):	12-24AWG 0.2mm²-2.5mm²
最大锁紧扭力/Torque:	3.0 Lb-In 0.4N.m
螺丝规格/Screw:	M2.6
剥线长度/Wire strip length:	5~6mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV 2KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	260℃ ±5℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

End to end stackable

02 2 contacts
03 3 contacts
... ...
24 24contacts (Pitch 5.0) 12 12contacts (Pitch 10.0)
0 5.0/.197"

1 10.0/.394"
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp
0 Black
(RAL9005)
5 Green
(RAL 6018/T)
6 Blue
(RAL 5015/A)
8 Grey
(RAL 7035/D)
0 180D Wire inlet(Square hole)
(Horizontal)
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy
