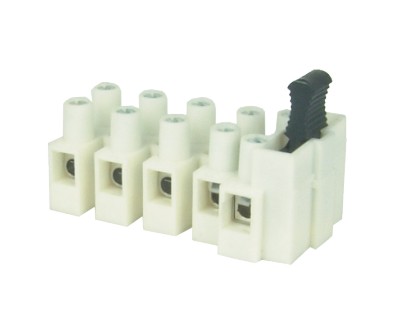

型号：TM
产品描述 | |
| 型号/Part No.: | TM |
| 间距/Pitch: | |
| 位数/Poles: | 3P/4P/5P |
| 料号/Number: | TMxx19000000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus VDE |
| 额定电压/Voltage rating: | 400V 450V |
| 额定电流/Current rating: | 10A 24A |
| 适用线经/Wire range: | 0.34~2.5mm2 |
| 单芯线经（AWG）/Solid wire(AWG): | 14-22 |
| 多芯线经（AWG）/Stranded wire(AWG): | 14-22 |
| 最大锁紧扭力/Torque: | 3.5Lb-In 0.5N.m |
| 螺丝规格/Screw: | M3 |
| 剥线长度/Wire strip length: | 7~8mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.8KV 2.5KV |
| 安全认证/Safety Approval: |   |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
产品料号编码原则-How to order
|
|
|
- Solid block
03 3 contacts
04 4 contacts
05 5 contacts - 0 "-/+"Combination type W/Brass Machined
1 "-"Slot type
W/Brass Machined - 8 Dark grey
9 White - 0 Black
- 0 W/O Earth screw
1 W/Earth screw
(M3*14)
2 W/Earth screw
(M3*18) - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper A lloy
