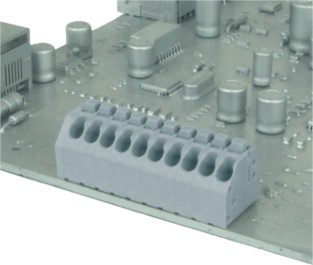

型号：HC 3.5
产品描述 | |
| 型号/Part No.: | HC 3.5 |
| 间距/Pitch: | 3.5 |
| 位数/Poles: | 2P-24P |
| 料号/Number: | HCxx00800000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | UL VDE CQC TUV |
| 额定电压/Voltage rating: | 300V 130V 300V 500V |
| 额定电流/Current rating: | 6A 6A 6A 8A |
| 适用线经/Wire range: | 0.5~0.75mm2 / 0.5~1.5mm2 |
| 单芯线经（AWG）/Solid wire(AWG): | 16-22 20 |
| 多芯线经（AWG）/Stranded wire(AWG): | 16-22 20 |
| 剥线长度/Wire strip length: | 8.5~10.0mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6 KV 12.5KV 2.5KV 4KV |
| 安全认证/Safety Approval: |     |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 250℃ ±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
01 1 contacts
02 2 contacts
03 3 contacts
... ...
24 24 contacts - 0 3.5/.138"
- 0 Standard
- 0 Black
2 Rde
5 Green
(RAL6018/T)
8 Grey
(RAL7004/P)
C Multiple
colors - 0 Double row center contact
link together with end cover - 000 0 Standard
Any special item by customer request,
please contact sales department.
