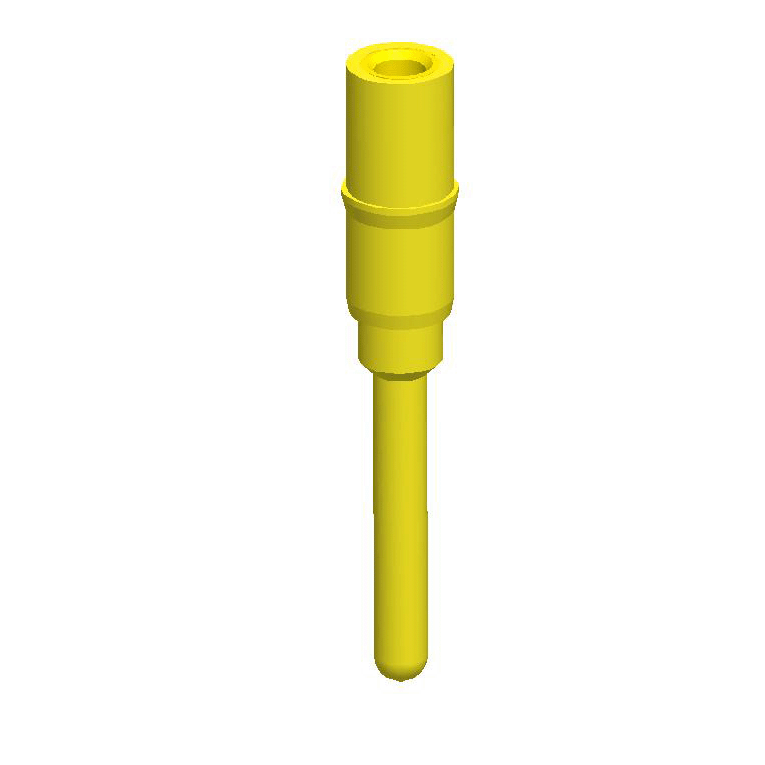

产品描述 | |
| 型号/Part No.: | OS |
| 间距/Pitch: | |
| 位数/Poles: | |
| 料号/Number: | OS3000X10000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 3 finger): Beryllium copper,heat treated
Plating(outer sleeve) : Tin plated : 2u"m/80u"nickel,5um/200u"Tin
Gold plated : 2um/80 u"nickel,Full gold flash
Plating(contact) : 2um/80 u"nickel,gold or Tin plating(See TABLE)
Electrical
Current rating : 1 Amps/contact max.
Current resistance : <4m? /contact.
Mechanical
Average insertion force with steel pin of Φ 0.28mm/0.011":
3-finger≦3 0g
Average withdrawal force with steel pin ofΦ0.28mm/0.011":
3-finger≧9 g
Mechanical life: min.200
|
|
|
- 3 3finger
- 0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
5 Gold 10 u" Gold flash
6 Gold 30 u" Gold flash - 1 5.0mm
- Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
