型号：ON
产品描述 | |
| 型号/Part No.: | ON |
| 间距/Pitch: | |
| 位数/Poles: | |
| 料号/Number: | ON0000X00000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍

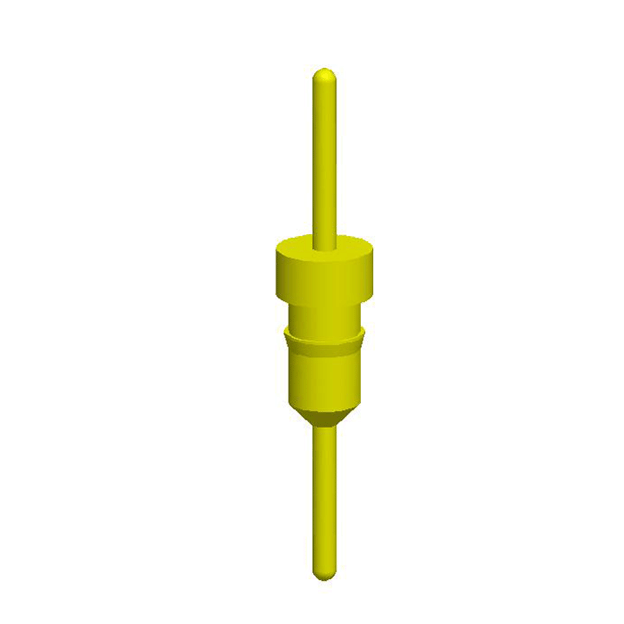

Materials Pin (outer sleeve) : Brass,machined, CuZn38Pb2 Plating(outer sleeve) : Tin plated : 2u"m/80u"nickel,5um/200u"Tin Gold plated : 2um/80 u"nickel,Full gold flash Electrical Current rating : 3 Amps/contact max. Operating voltage : 60 V AC/DC
产品料号编码原则-How to order
|
|
|
- 0 Tin 200 u"
1 Gold flash
2 Gold 10 u"
3 Gold 30u - 0 10.0mm
1 11.96mm
2 13.70mm
4 9.5mm
5 12.2mm - Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
