产品描述

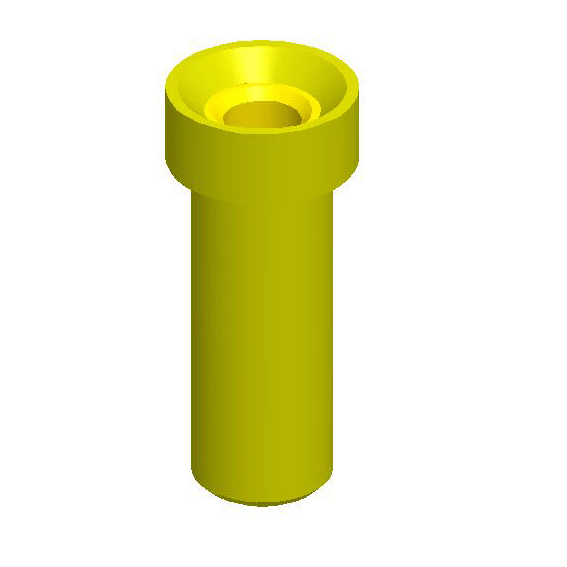

型号/Part No.:	OH
间距/Pitch:
位数/Poles:
料号/Number:	OHX010X00000G
详细信息请参阅pdf文件	网站图纸仅供参考，具体需求请联系业务。

产品介绍

Materials
Pin (outer sleeve) :               Brass,machined, CuZn38Pb2
Clip(contact 4/6 finger):        Beryllium copper,heat treated
Plating(outer sleeve) :          Tin plated :  2u"m/80u"nickel,5um/200u"Tin
Gold plated :                         2um/80 u"nickel,Full gold flash
Plating(contact) :                  2um/80 u"nickel,gold or Tin plating(See TABLE)

Electrical
Current  rating :                    3 Amps/contact max.
Current  resistance :              <4mΩ   /contact.


Mechanical
Average insertion force with steel pin of        0.43mm/0.017":
4-finger≦250g.6-finger≦80g
Average withdrawal force with steel pin of     0.43mm/0.017":
4-finger≦50g.6-finger≦15g

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

4 4finger
6 6finger
00 Without loop
01 With loop
0 BeCu
1 PhBz
0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
5 Gold 10 u" Gold flash
6 Gold 30 u" Gold flash
0 4.2mm
1 4.0mm
Customer's special
requirements
"0000~9999"
"0000"(standard)
Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
