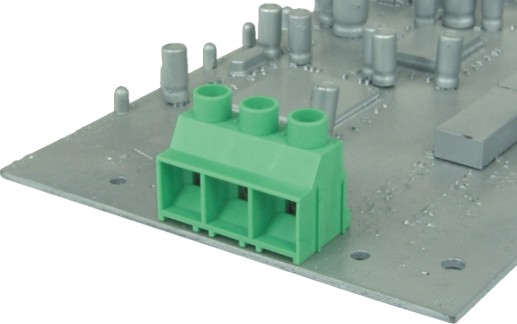

型号：KO(Back single row)
产品描述 | |
| 型号/Part No.: | KO(Back single row) |
| 间距/Pitch: | 9.52 |
| 位数/Poles: | 2P,3P |
| 料号/Number: | KOxx21500000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 300V |
| 额定电流/Current rating: | 30A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 10-24 |
| 多芯线经（AWG）/Stranded wire(AWG): | 10-24 |
| 最大锁紧扭力/Torque: | 5.5 Lb-In |
| 螺丝规格/Screw: | M3.5 |
| 剥线长度/Wire strip length: | 7~8mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6 KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 250℃±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
02 2 contacts
03 3 contacts
… …
16 16 contacts - 2 9.52/.374"
- 2 "-/+"Combination type
W / Brass Machined Clamp
3 "-"Slot type
W / Brass Machined Clamp - 0 Black
5 Green (RAL 6018/T)
6 Blue
8 Grey (RAL7035/D)
C Green (RAL 6018/U) - 0 Back single row
1 Solder pins
staggered by
half pin spacing - 000 0 Standard
Any special item by customer request,
please contact sales department - G RoHS compliant
(lead<4%)
In copper A lloy
H RoHS compliant
(lead<1000ppm)
In copper A lloy
