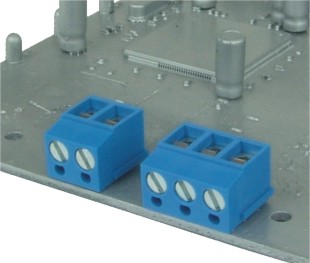

TB-1 Interlock - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	250V
额定电流/Current rating:	15A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	14-22
多芯线经（AWG）/Stranded wire(AWG):	14-22
最大锁紧扭力/Torque:	3.5Lb-In
螺丝规格/Screw:	M3
剥线长度/Wire strip length:	6~7mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	260℃ ±5℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

End Stackable
02 2 contacts
03 3 contacts
... ...
24 24 contacts
( pitch 5.08mm)
12 12 contacts
(pitch 10.16mm)
Pitch
2 5.08/.20"
3 10.16/.40"
Screw&Clamp
0 "+/-" combination type
W/Brass machined clamp
1 "-" slot type
W/Brass machined clamp
Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green(RAL6018/U)
Tail length
0 4.4mm
1 3.8mm
2 3.5mm
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy
