Materials
Contact                     :Phosphor bronze
Surface of contact     :Tin  plated
Insulator body           : PPS.  UL94V-0

Electrical
Current rating             :2Amp continuous
Contact resistance      :20mΩ

Insulation resistance  :≧5000MΩat 500VAC
Contact pressure:         min 1.5 N per contact
Capacitance:                max  2pF

Mechanical
Operating temperatures (continuous):-55℃   to+125℃ ,-67 ℉  to+230℉

Durability                :50cycles

Application
Applications and Features

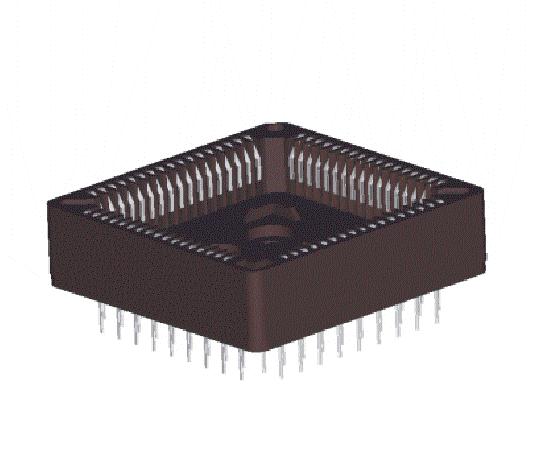

1.Accepts"JEDEC"type A,leaded chip carrier
2.Special contact design for high reliablility and good withstanding to vibration and shock
3.Solder tails are positioned on 2.5mm/01.00" square grid
4.Low profile type
5.Stand-off's for cleaning and great dissipation
6.Visual polarization for easy assembly

Environmental data
Solderability (IEC 60068-2-20. Ta)  :235 ℃  , 2s
Resistance to soldering heat  (IEC 60068-2-20.  Tb) :
-Through hole mount components     :260 ℃ ,  10s
