产品描述 | |

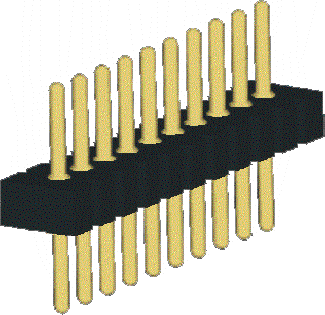

| 型号/Part No.: | S5 SINGLE ROW |
| 间距/Pitch: | 1.00 |
| 位数/Poles: | 1.00 |
| 料号/Number: | S5XX00X00000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
Materials
Insulator: Glass filled Hi-temperature thermoplastic UL 94V-0
colour black.
Pin : brass .gold or tin-lead plated over 2-3um nickel
Electrical
Operating coltage: 50 VRMS /60VDC
Continuous operating: max.1A per terminal current
Insulation resitance: 10000MΩafter climatic tests)
Dielectric strength: 500VRMS
Air and creepage (min): 0.2
Capacitance(pF): 1
Mechanical
Operating tempoerature : -55℃ to +125℃
Solderability (IEC 60068-2-20. Ta) :235 ℃, 2s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :280 ℃ , 10s
|
|
|
- Single row = 01 to 50
- 0 Single row
- 0 Tin 200 u"
1 Gold flash
2 Gold 10 u"
3 Gold 30u" - 0 6.13mm
- Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
