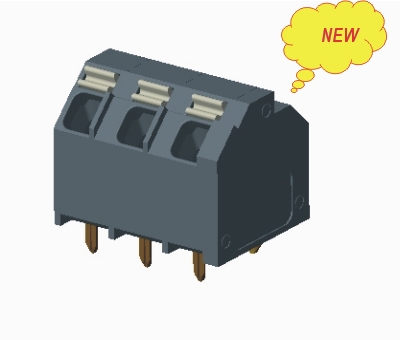

型号：NI 5.08mm series THR Type
产品描述 | |
| 型号/Part No.: | NI 5.08mm series THR Type |
| 间距/Pitch: | 5.08mm |
| 位数/Poles: | 1P-24P |
| 料号/Number: | NIxx5A0xxxxxG |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus VDE |
| 额定电压/Voltage rating: | 300V 13V |
| 额定电流/Current rating: | 10A 9A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 16-26AWG 0.2-1.5mm2 |
| 多芯线经（AWG）/Stranded wire(AWG): | 16-26AWG 0.2-1.5mm2 |
| 最大锁紧扭力/Torque: | |
| 螺丝规格/Screw: | |
| 剥线长度/Wire strip length: | 8-9mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV 1.25KV |
| 安全认证/Safety Approval: |   |
| 操作温度/Operating temperature: | -45℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 260℃/10Sec Max |
产品料号编码原则-How to order
|
|
|
- NO OF Poles
01 1Poles
02 2Poles
... ...
24 24Poles - 5 5.08/.20"
- 0 Black
- 0000 @ Logo
000A ANY Logo
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper Alloy
