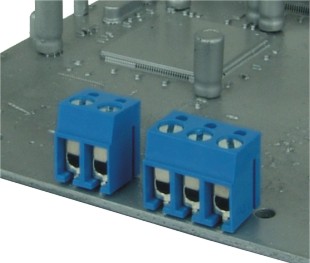

型号：VA-1 Interlock
产品描述 | |
| 型号/Part No.: | VA-1 Interlock |
| 间距/Pitch: | 5.0mm |
| 位数/Poles: | 2P,3P |
| 料号/Number: | VAxx01600000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 300V |
| 额定电流/Current rating: | 15A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 14-22 |
| 多芯线经（AWG）/Stranded wire(AWG): | 14-22 |
| 最大锁紧扭力/Torque: | 3.5Lb-In |
| 螺丝规格/Screw: | M3 |
| 剥线长度/Wire strip length: | 6~7mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 260℃ ±5℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
02 2 contacts
03 3 contacts
... ...
24 24 contacts
( pitch 5.0)
12 12 contacts
(pitch 10.0) - Pitch
0 5.00/.197"
1 10.00/.394" - Screw&Clamp
0 "+/-" combination type
W/Brass machined clamp
1 "-" slot type
W/Brass machined clamp - Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green(RAL6018/U) - 000 0 Standard
Any special item by customer request,
please contact - G RoHS compliant
(lead<4%)
In copper A lloy
