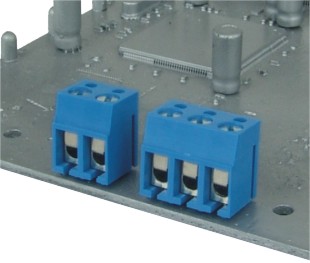

型号:TA-5.08 1 Interlock
产品描述 | |
型号/Part No.: | TA-5.08 1 Interlock |
间距/Pitch: | 5.08mm |
位数/Poles: | 2P,3P |
料号/Number: | TAxx41630000G |
详细信息请参阅pdf文件![]() | 网站图纸仅供参考,具体需求请联系业务。 |
产品介绍
电气性能-Electrical
安规类别/Safety category: | cULus |
额定电压/Voltage rating: | 300V |
额定电流/Current rating: | 15A |
适用线经/Wire range: | |
单芯线经(AWG)/Solid wire(AWG): | 14-22 |
多芯线经(AWG)/Stranded wire(AWG): | 14-22 |
最大锁紧扭力/Torque: | 3.5Lb-In |
螺丝规格/Screw: | M3 |
剥线长度/Wire strip length: | 6~7mm |
耐电压值(1分钟)/Withstanding Voltage: | 1.6KV |
安全认证/Safety Approval: | ![]() |
操作温度/Operating temperature: | -40℃ to +115℃ |
焊锡温度/Soldering temperature: | 250℃±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
02 2 contacts
03 3 contacts
... ...
24 24contacts
( pitch 5.08mm)
12 12contacts
(pitch 10.16mm) - 4 5.08/.20"
(1-lock)
5 10.16/.40"
(1-lock) - 0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp - Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green(RAL6018/U) - 1 3.8mm
3 4.0mm - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper A lloy
