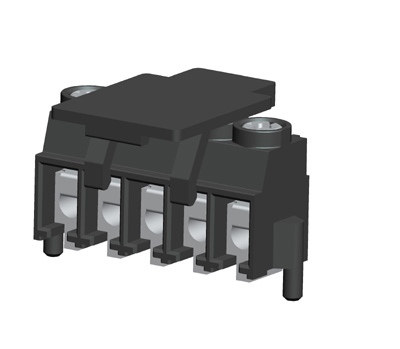

型号:EC 3.5 SMT type (With Pillar)
产品描述 | |
型号/Part No.: | EC 3.5 SMT type (With Pillar) |
间距/Pitch: | 3.5mm |
位数/Poles: | 2p~16p |
料号/Number: | ECxx1001B000G |
详细信息请参阅pdf文件![]() | 网站图纸仅供参考,具体需求请联系业务。 |
产品介绍
电气性能-Electrical
安规类别/Safety category: | cULus |
额定电压/Voltage rating: | 150V |
额定电流/Current rating: | 10A |
适用线经/Wire range: | |
单芯线经(AWG)/Solid wire(AWG): | 16-26 |
多芯线经(AWG)/Stranded wire(AWG): | 16-26 |
最大锁紧扭力/Torque: | |
螺丝规格/Screw: | |
剥线长度/Wire strip length: | 6~7mm |
耐电压值(1分钟)/Withstanding Voltage: | 1.6KV |
安全认证/Safety Approval: | ![]() |
操作温度/Operating temperature: | -45℃ to +130℃ |
焊锡温度/Soldering temperature: | 260℃/10Sec Max |
产品料号编码原则-How to order
|
|
|
- Solid block
02 2 contacts
03 3 contacts
... ...
16 16 contacts
( pitch 3.5mm)
12 12 contacts
( pitch 7.0mm) - Pitch
1 3.50/.138"
2 7.0/.276" - Screw&Clamp
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp - Color
0 Black
(RAL9005) - 0 Without pillar & With cover
1 With pillar &
With cover - B000 "@" Logo
B00A "ANY" Logo
... ...
Any special item by customer request,please contact sales department - G RoHS compliant
(lead<4%)
In copper A lloy
