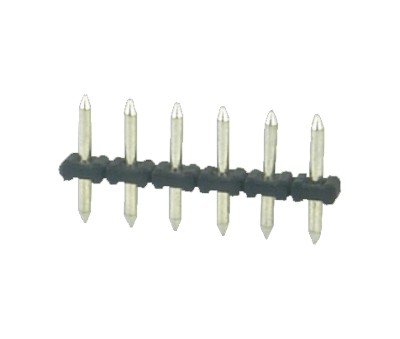

OP 5.0 - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus VDE TUV
额定电压/Voltage rating:	300V 300V 300V
额定电流/Current rating:	15A 12A 15A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):
多芯线经（AWG）/Stranded wire(AWG):
最大锁紧扭力/Torque:
螺丝规格/Screw:
剥线长度/Wire strip length:
耐电压值（1分钟）/Withstanding Voltage:	1.6KV 2.5KV 2.5KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	260℃ ±5℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Solid Block
02 2contacts
03 3contacts
... ...
24 24contacts
(pitch:5.0)
12 12contacts
(pitch:10.0)
0 5.00/.197"
1 10.0/394"
1 L=13.0mm(UP∮1.3 Down1.0）（DIMA=4.3)
2 L=12.5mm(UP∮1.3 Down1.0）（DIMA=3.5)
3 L=11.5mm(UP∮1.3 ）（DIMA=1.9)
4 L=14.2mm(UP∮1.3 ）（DIMA=2.9)
5 L=17.5mm(UP∮1.3 ）（DIMA=3.5)
6 L=20.0mm(UP∮1.3 ）（DIMA=3.5)
7 L=18.0mm(UP∮1.3 down:1.0）（DIMA=3.5)
8 L=16.2mm(UP∮1.
0 Tin
1 Gold plating 10u"
2 Gold flash
0 PA66

1 PA46
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper Alloy
