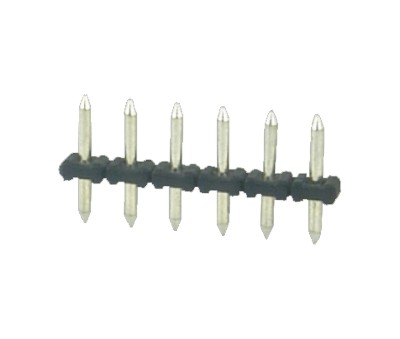

型号：OP 5.0 L=12.5mm
产品描述 | |
| 型号/Part No.: | OP 5.0 L=12.5mm |
| 间距/Pitch: | 5.0 |
| 位数/Poles: | 2P-24P |
| 料号/Number: | OPxx00000000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus VDE TUV |
| 额定电压/Voltage rating: | 300V 300V 300V |
| 额定电流/Current rating: | 15A 12A 15A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | |
| 多芯线经（AWG）/Stranded wire(AWG): | |
| 最大锁紧扭力/Torque: | |
| 螺丝规格/Screw: | |
| 剥线长度/Wire strip length: | |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV 2.5KV 2.5KV |
| 安全认证/Safety Approval: |    |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 260℃ ±5℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- Solid Block
02 2contacts
03 3contacts
... ...
24 24contacts
(pitch:5.0)
12 12contacts
(pitch:10.0) - 0 5.00/.197"
1 10.0/394" - 0 L=12.5mm ∮1.3
- 0 Tin
1 Gold plating 10u"
2 Gold flash - 0 PA66
1 PA46 - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper Alloy
