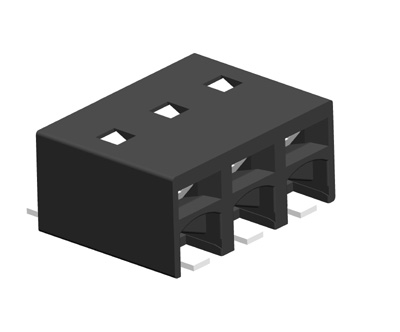

型号：NQ 4.0 SMT typ( tape reel)
产品描述 | |
| 型号/Part No.: | NQ 4.0 SMT typ( tape reel) |
| 间距/Pitch: | 4.0mm |
| 位数/Poles: | 2p~3p |
| 料号/Number: | NQxx21x0xxxxG |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | UL cULus (UL1977 Standard) |
| 额定电压/Voltage rating: | 300V 300V |
| 额定电流/Current rating: | 9A 5A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 18-24 |
| 多芯线经（AWG）/Stranded wire(AWG): | 18-24 |
| 最大锁紧扭力/Torque: | |
| 螺丝规格/Screw: | |
| 剥线长度/Wire strip length: | 6~7mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV |
| 安全认证/Safety Approval: |   |
| 操作温度/Operating temperature: | -45℃ to +130℃ |
| 焊锡温度/Soldering temperature: | 260℃/10Sec Max |
产品料号编码原则-How to order
|
|
|
- Solid Block
02 2 poles
03 3 poles - 2 4.0/.16"
- 1 WithoutFlange
- 0 Black
1 Natural color
8 Grey - 0000 "@" Logo
000A "ANY" Logo
... ...
Any special item by customer request,please contact sales department - G RoHS compliant
(lead<4%)
In copper A lloy
