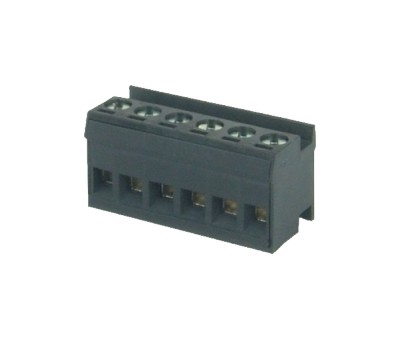

EO5.0 - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	300V
额定电流/Current rating:	15A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	12-28
多芯线经（AWG）/Stranded wire(AWG):	12-28
最大锁紧扭力/Torque:	4.5 Lb-In
螺丝规格/Screw:	M3
剥线长度/Wire strip length:	5~6mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Solid block
02 2 contacts
03 3 contacts
...
12 12 contacts
(pitch:5.0)
0 5.0/.197"
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp
0 Black
5 Green
6 Blue
8 Grey
0 Two beam contact
(Hole Dim 1.9mm)
(with EP 1.0mm)

2 Six finger contact
(Hole Dim 1.9mm)
(with EX¢1.3mm L=16.0mm)
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper Alloy

H RoHS compliant
(lead<1000ppm)
In copper Alloy
