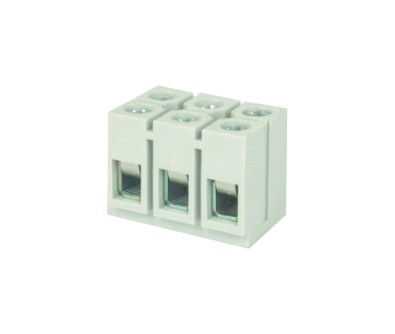

型号：EN
产品描述 | |
| 型号/Part No.: | EN |
| 间距/Pitch: | 12.5 |
| 位数/Poles: | 2P~6P |
| 料号/Number: | ENxx04800000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 300V |
| 额定电流/Current rating: | 57A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 6-22 |
| 多芯线经（AWG）/Stranded wire(AWG): | 6-22 |
| 最大锁紧扭力/Torque: | 13 Lb-In |
| 螺丝规格/Screw: | M4 |
| 剥线长度/Wire strip length: | 8~9mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
产品料号编码原则-How to order
|
|
|
- 02 2 Poles
03 3 Poles
...
12 12Poles - 0 12.5/.4921"
- 4 "+/-" combination type
W/Steel stamping clamp - Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D) - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper A lloy
