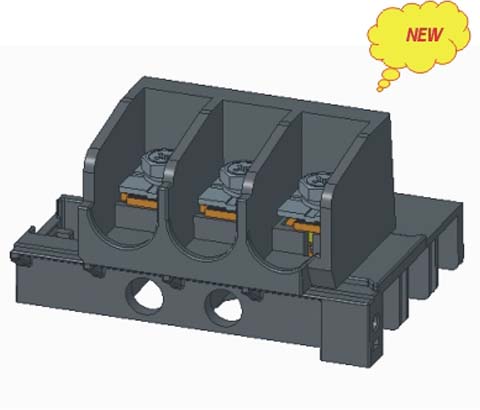

型号：YJ -100 (74A)
产品描述 | |
| 型号/Part No.: | YJ -100 (74A) |
| 间距/Pitch: | 21.0 |
| 位数/Poles: | 3P |
| 料号/Number: | YJ1000310xxxG |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | UL1059 |
| 额定电压/Voltage rating: | 600V |
| 额定电流/Current rating: | 74A |
| 绝缘耐电压/Insulation WithstandsVoltage: | 2.2KV |
| 工作温度/Using Temperature Rang : | -40℃ to +115℃ |
| 螺丝锁紧值/Screw Torque Value: | 45Kgf.cm |
| 适用线径/ Suitable Electric Wire: | 8~1/0 AWG |
| 安全认证/Safety Approval: |  |
产品料号编码原则-How to order
|
|
|
- 1: Current rating 74A
With Brass Terminal
2: Current rating 114A
With Brass Terminal
3: Current rating 140A
With Copper Terminal - 0:Screw M5 (only 74A)
1:Screw M6 （Only 114A＆140A） - 0: @Mark
A: ANY Mark - Customer‘s Special repuirements
“01-99
00 standard - F: RoHS compliant
(lead<100ppm)
In copper Alloy
G: RoHS compliant
(lead<4%)
In copper Alloy
H: RoHS compliant
(lead<1000ppm)
In copper Alloy
