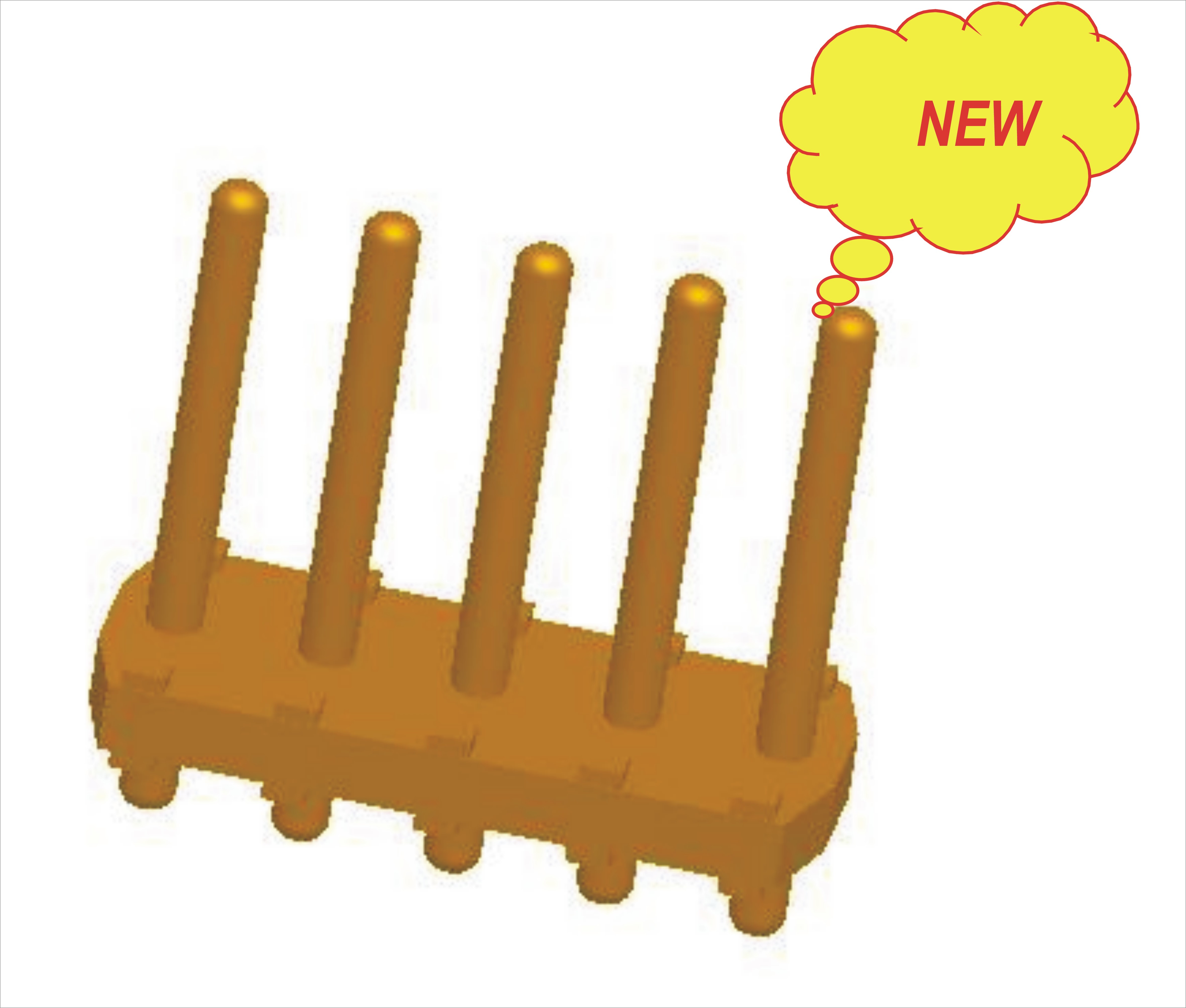

型号：OL 3.5 Series
产品描述 | |
| 型号/Part No.: | OL 3.5 Series |
| 间距/Pitch: | 3.5mm |
| 位数/Poles: | 2P-24P |
| 料号/Number: | OLxx1000xxxxG |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 150V |
| 额定电流/Current rating: | 2A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | |
| 多芯线经（AWG）/Stranded wire(AWG): | |
| 剥线长度/Wire strip length: | |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.3KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: |
产品料号编码原则-How to order
|
|
|
- Solid Block
02 2 contacts
03 3 contacts
... ...
24 24 contacts - 1 3.5/.138"
2. 7.0/.276" - 0 l=16.5mm
(∮1.3)DIMA=3.5mm - 0 Tin
1 Gold plating 10u"
2 Gold flash - 0 Dip type
1 THR type - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper Alloy
