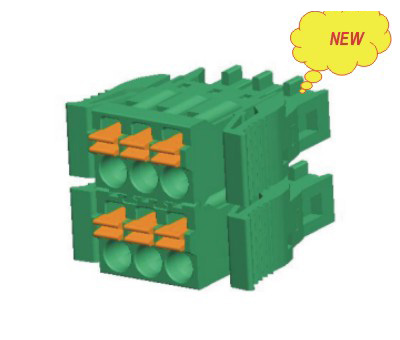

型号：KD3.5 With latch (Double level)
产品描述 | |
| 型号/Part No.: | KD3.5 With latch (Double level) |
| 间距/Pitch: | 3.5 |
| 位数/Poles: | 2*2P-2*24P |
| 料号/Number: | KDxx1052A000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 160V |
| 额定电流/Current rating: | 5.5A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 16-24 |
| 多芯线经（AWG）/Stranded wire(AWG): | 16-24 |
| 剥线长度/Wire strip length: | 9~10mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.32KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: |
产品料号编码原则-How to order
|
|
|
- Solid Block
04 2x2 contacts 06 2x3 contacts
... ...
48 2x24 contacts - 1 3.5/.138"
- 0 Black
5 Green
(RAL 6018/T)
6 Blue
8 Grey
(RAL 7035/D) - 2 With latch
- A00 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS complian(lead<4%)
In copper Alloy
H Rohs compliant
(lead<1000ppm)In copper Alloy
