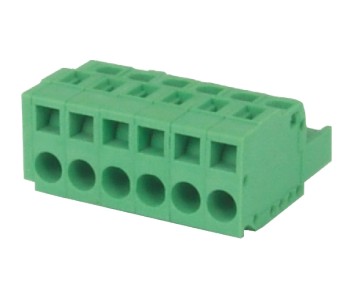

型号：HI-5.0 With hook and pillar
产品描述 | |
| 型号/Part No.: | HI-5.0 With hook and pillar |
| 间距/Pitch: | 5.0 |
| 位数/Poles: | 2P~24P |
| 料号/Number: | HIxx00500000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 300V |
| 额定电流/Current rating: | 15A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 12-28 |
| 多芯线经（AWG）/Stranded wire(AWG): | 12-28 |
| 剥线长度/Wire strip length: | 8~9mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: |
产品料号编码原则-How to order
|
|
|
- End Stackable
01 01 contacts
02 02 contacts
03 03 contacts
... ...
24 24 contacts - 0 5.0/.197"
- 0 Black
5 Green(RAL6018/T)
6 Blue
8 Grey(RAL7035/D) - 0 With Hook
and pillar
(Without flange) - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper Alloy
H RoHS compliant
(lead<1000ppm)
In copper Alloy
