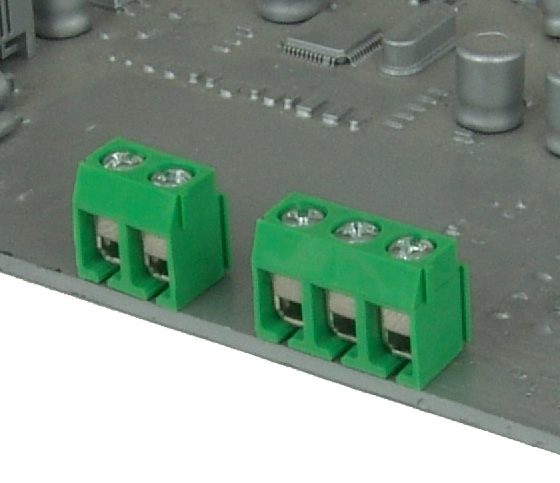

T3-2 Interlock - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus TUV
额定电压/Voltage rating:	300V 250V
额定电流/Current rating:	8A 12A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	14-26 AWG 0.2mm²-2.5mm²
多芯线经（AWG）/Stranded wire(AWG):	14-26 AWG 0.2mm²-2.5mm²
最大锁紧扭力/Torque:	3.5Lb-In 0.4N.m
螺丝规格/Screw:	M2.5
剥线长度/Wire strip length:	5~6mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	260℃ ±5℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

End Stackable
02 2 contacts
03 3 contacts
... ...
24 24 contacts
(pitch:5.0)
12 12 contacts
(pitch:10.0)
0 5.00/.197"
1 10.00/.394"
4 "-/+"Combination type
W/Brass stamping Clamp
5 "-"Slot type
W/Brass stamping Clamp
Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
Tail length 1 Stackable
( 4.0mm)
3 Stackable
(90D Wire inlet)
4 Solid block
(180d 4.0mm)
0000 "@" Logo Standard
000A "ANYTEK" Logo

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy
