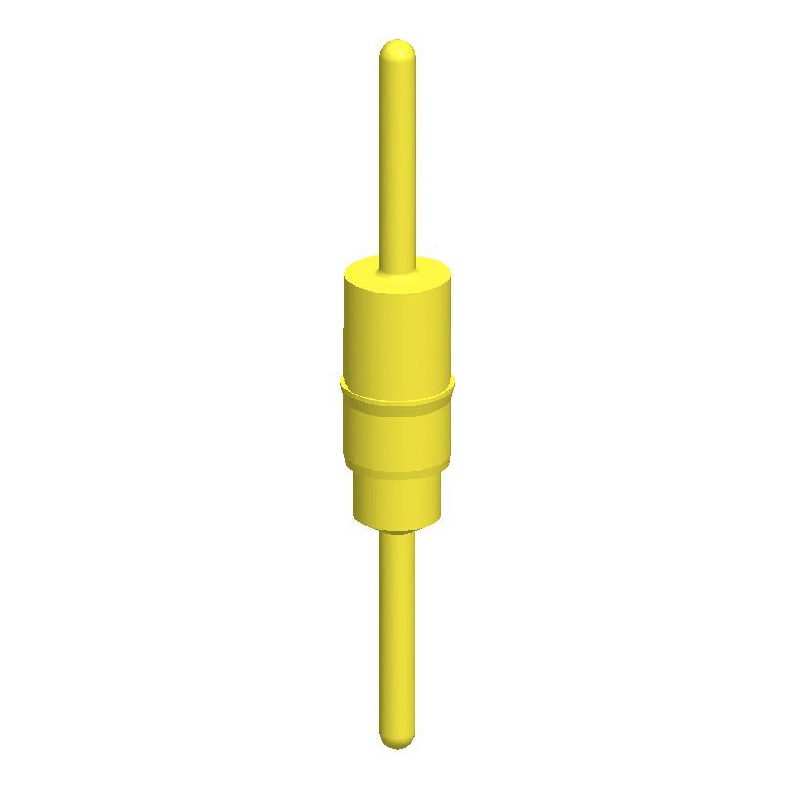

型号：OM
产品描述 | |
| 型号/Part No.: | OM |
| 间距/Pitch: | |
| 位数/Poles: | |
| 料号/Number: | OM0000010000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated : 2um/80 u"nickel,Full gold flash
Electrical
Current rating : 3 Amps/contact max.
Operating voltage : 60 V AC/DC
产品料号编码原则-How to order
|
|
|
- 0 Tin 200 u"
1 Gold flash
2 Gold 10 u"
3 Gold 30u" - 0 9.79mm
1 10.0mm
2 8.2mm
3 5.65mm
4 7.7mm - Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
