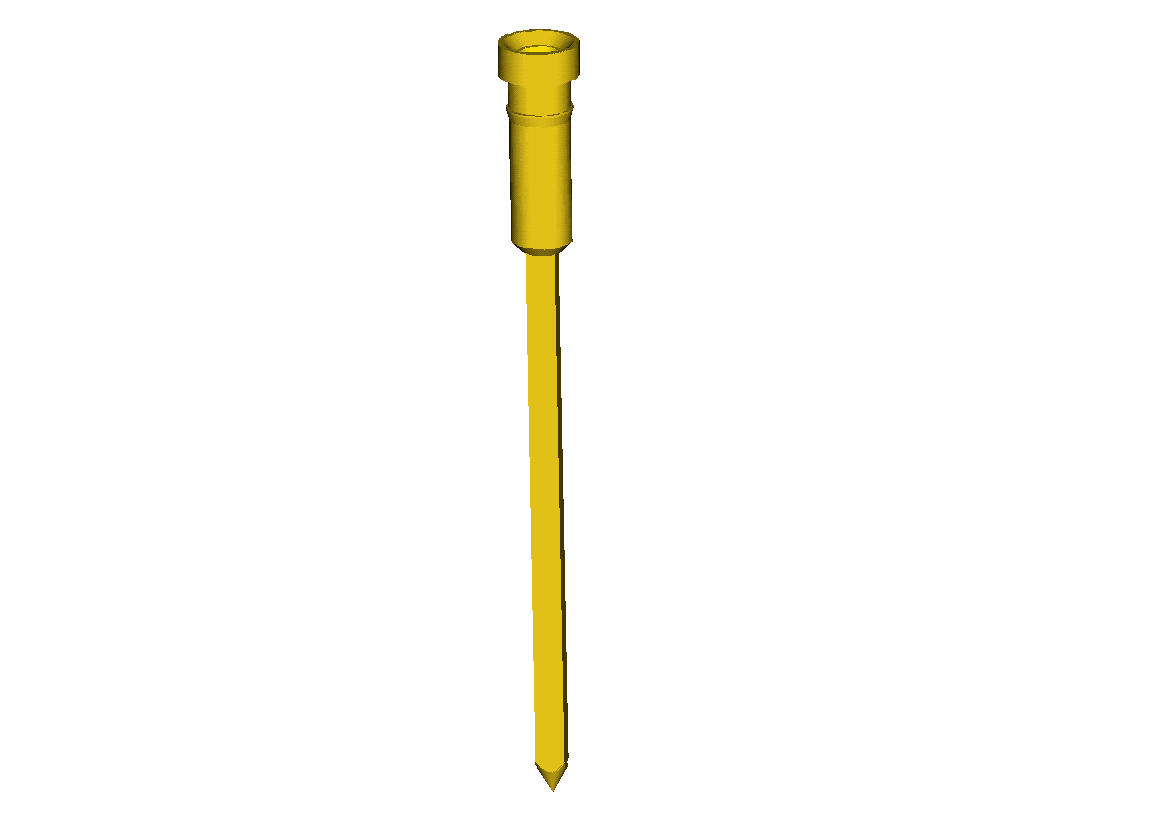

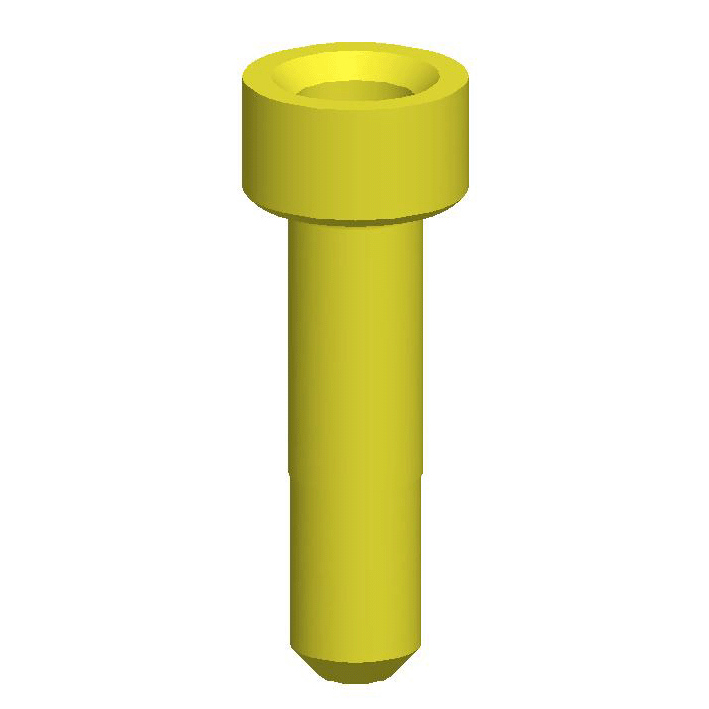

产品描述 | |
| 型号/Part No.: | OK |
| 间距/Pitch: | |
| 位数/Poles: | |
| 料号/Number: | OK3000X00000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 3 finger): Beryllium copper,heat treated
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated : 2um/80 u"nickel,Full gold flash Plating(contact) : 2um/80 u"nickel,gold or Tin plating(See TABLE)
Electrical
Current rating : 1Amps/contact max. Current resistance : <4m Ω/contact.
Mechanical
Torque: 4kgf.cm/M3
Average insertion force with steel pin of 0.43mm/0.017":
3-finger≦8 0g
Average withdrawal force with steel pin of 0.43mm/0.017":
3-finger≧15g
|
|
|
- 3 3finger
- 0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
5 Gold 10 u" Gold flash
6 Gold 30 u" Gold flash - 0 4.0mm
- Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
