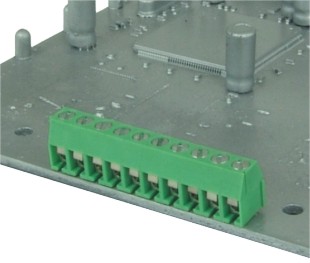

型号：T5
产品描述 | |
| 型号/Part No.: | T5 |
| 间距/Pitch: | 3.5mm |
| 位数/Poles: | 2P~24P |
| 料号/Number: | T5xx01500000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 125V |
| 额定电流/Current rating: | 10A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 16~26 |
| 多芯线经（AWG）/Stranded wire(AWG): | 16~26 |
| 最大锁紧扭力/Torque: | 1.7Lb-In |
| 螺丝规格/Screw: | M2 |
| 剥线长度/Wire strip length: | 5~6mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.25KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 250℃ ±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
02 2 contacts
03 3 contacts
... ...
24 24 contacts
(Pitch:3.5)
12 12 contacts
(pitch:7.0) - Pitch
0 3.5/.138"
1 7.0/.276" - Screw&Clamp
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp - Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D) - 0 3.5mm
- 0000 Standard
- G RoHS compliant
(lead<4%)
In copper A lloy
