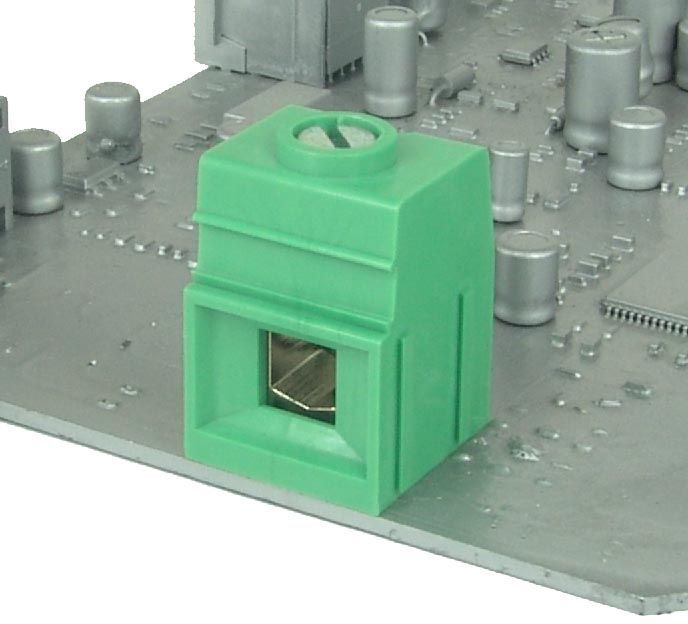

型号：EJ
产品描述 | |
| 型号/Part No.: | EJ |
| 间距/Pitch: | 19.0 |
| 位数/Poles: | 1 |
| 料号/Number: | EJ01D1510000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 600V |
| 额定电流/Current rating: | 100A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 3-18 |
| 多芯线经（AWG）/Stranded wire(AWG): | 3-18 |
| 最大锁紧扭力/Torque: | 30 Lb-In |
| 螺丝规格/Screw: | M5 |
| 剥线长度/Wire strip length: | 12~15mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 2.2.KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: | 250℃ ±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
01 1 contacts
02 2 contacts
03 3 contacts
... ...
06 6 contacts - D 19.0/.748"
- 0 "+/-"Slot type
W/ Brass Machined Clamp
5 "-"Slot type
W/ Brass Machined Clamp - 0 Black
5 Green
(RAL 6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green
(RAL6018/U) - 1 Middle contact
(double)+Side contact(double)
W/O Flange - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper A lloy
