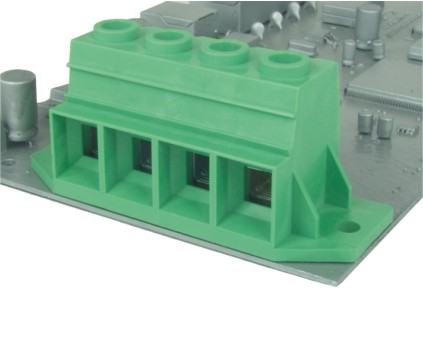

EI-With flange - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus IEC
额定电压/Voltage rating:	600V 1000V
额定电流/Current rating:	125A 125A
适用线经/Wire range:	35mm²
单芯线经（AWG）/Solid wire(AWG):	2-20
多芯线经（AWG）/Stranded wire(AWG):	2-20
最大锁紧扭力/Torque:	36.5Lb-In
螺丝规格/Screw:	M5
剥线长度/Wire strip length:	12~15mm
耐电压值（1分钟）/Withstanding Voltage:	2.2KV 8KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	260℃ ±5℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Solid block
02 2 contacts
03 3 contacts
…
10 10 contacts
C 15.0/.591"
1 "-" Combination type
W/steel samping clamp
2 "*" Combination type
W/steel samping clamp
0 Black
2 Red
3 Orange
4 Yellow
5 Green
(RAL 6018/T)
6 Blue
8 Grey
(RAL7035/D)
9 White

C Green
( RAL 6018/U)
2 Middle contact
(single)+side contact(single)
3 Middle contact
(double)+side contact(double)
100 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy

H RoHS compliant
(lead<1000ppm)
In copper A lloy
