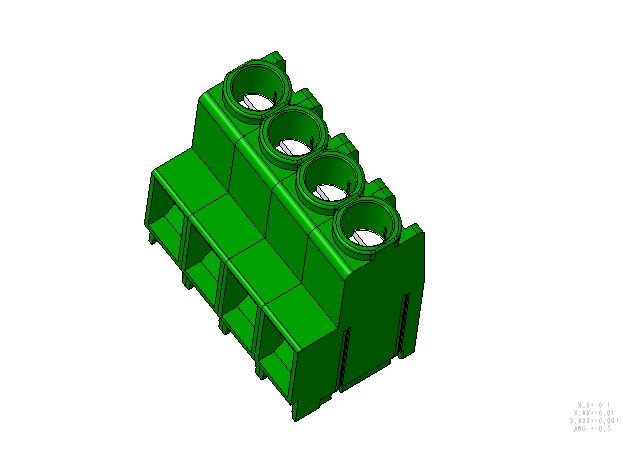

KP 6.35(Double interlace tail) - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	600V
额定电流/Current rating:	30A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	10-24
多芯线经（AWG）/Stranded wire(AWG):	10-24
最大锁紧扭力/Torque:	5.2 Lb-In
螺丝规格/Screw:	M3.5
剥线长度/Wire strip length:	8~9mm
耐电压值（1分钟）/Withstanding Voltage:	2.2 KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	250℃±10℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

End stackable
02 2 contacts
03 3 contacts
… …
16 16 contacts
(pitch:6.35)
0 6.35/.25"
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green
(RAL6018/U)
0 Solder pins staggered
by half pin spacing
1 Back Single row
2 Front Single row
0000 (without cover )

1000 (with cover )

Any special item by customer request,
please contact sales department
G RoHS compliant
(lead<4%)
In copper A lloy

H RoHS compliant
(lead<1000ppm)
In copper A lloy
