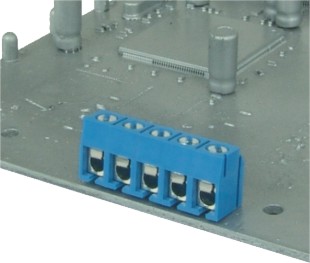

型号:TC-Solid block
产品描述 | |
型号/Part No.: | TC-Solid block |
间距/Pitch: | 5.0mm |
位数/Poles: | 2P~24P |
料号/Number: | TCxx0362A500G |
详细信息请参阅pdf文件![]() | 网站图纸仅供参考,具体需求请联系业务。 |
产品介绍
电气性能-Electrical
安规类别/Safety category: | cULus VDE |
额定电压/Voltage rating: | 300V 250V |
额定电流/Current rating: | 15A 17.5 |
适用线经/Wire range: | 0.75~1.5mm2 |
单芯线经(AWG)/Solid wire(AWG): | 14-22 |
多芯线经(AWG)/Stranded wire(AWG): | 14-22 |
最大锁紧扭力/Torque: | 2.6Lb-In 0.4N.m |
螺丝规格/Screw: | M2.6 |
剥线长度/Wire strip length: | 5~6mm |
耐电压值(1分钟)/Withstanding Voltage: | 1.6KV 2KV |
安全认证/Safety Approval: | ![]() ![]() |
操作温度/Operating temperature: | -40℃ to +115℃ |
焊锡温度/Soldering temperature: | 250℃ ±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
02 2 contacts
03 3 contacts
... ...
24 24 contacts
( pitch 5.0mm)
12 12 contacts
(pitch 10.0mm) - Pitch
0 5.00/.197"
1 10.00/.394" - Screw&Clamp
2 "-/+"Combination type
W/Brass Machined Clamp
3 "-"Slot type
W/Brass Machined Clamp - Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Light Grey
(RAL7035/D)
C Green
(RAL6018/U) - Tail length
0 4.4mm
1 3.8mm
2 3.5mm
3 2.9mm - A500 Solid block
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper A lloy
