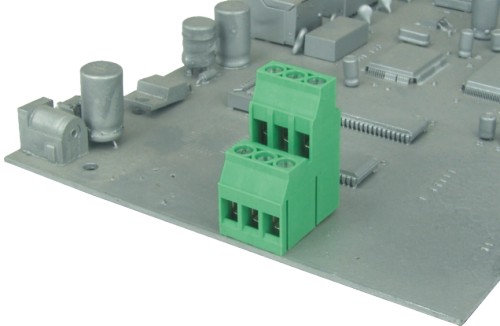

EB-5.08-Parallel - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	300V
额定电流/Current rating:	20A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	12-22
多芯线经（AWG）/Stranded wire(AWG):	12-22
最大锁紧扭力/Torque:	4.3 Lb-In
螺丝规格/Screw:	M3
剥线长度/Wire strip length:	6~7mm
耐电压值（1分钟）/Withstanding Voltage:	1.6 KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	250℃±10℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

End Stackable
04 2*2 contacts
06 2*3 contacts
… …
48 2*24 contacts
(pitch:5.08)
24 2*12 contacts
(pitch:10.16)
2 5.08/.20"
3 10.16/.40"
0 "-/+"Combination type
W/Brass Machined Terminal
1 "-"Slot type
W/Brass Machined Terminal
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green
(RAL6018/U)
3 W/O cover
(solder pin in line)
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy

H RoHS compliant
(lead<1000ppm)
In copper A lloy
