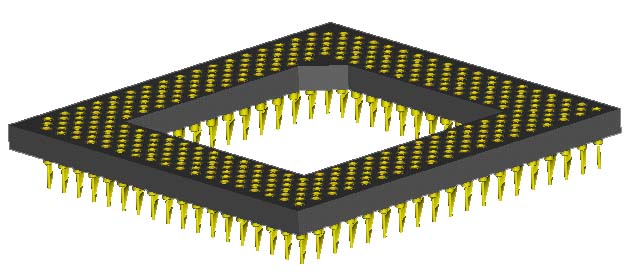

型号:SJ
产品介绍
Materials Housing (Outer sleeve) :Brass,machined Clip (contact) (6 finger) :Beryllium Copper,heat treated Plating Pin (outer sleeve):Tin plated:2u" m/80 u" nickel,5 /200?Tin Gold plated:2 u"m/80 u" nickel full gold flash Plating Clip (contact) :2 u"m/80 u" nickel full gold Insulator body (black) :PPS. UL94V-O Electrical Maximum current :1A Contact resistance per contact :<4mΩ
Insulation resistance : ≧ 10000MΩ at 500VAC Rated voltage : 100 VRMS /150VDC Air and creepage distance : 0.6mm Capacitance: 0.3pF max Mechanical Average insertion force with steel pin of 0.46mm/.018":< 35g Average with drawal force with steel pin of 0.46mm/.018":≧15g Mechanical life cycle :min.200 Operating temperatures :Gold plated:-55℃ to+125 ℃ -67 ℉
(Continuous) to+257 ℉ Tin plated -40℃ to+105℃ Application Solderability (IEC 60068-2-20. Ta) :235℃ , 2s Resistance to soldering heat (IEC 60068-2-20. Tb) : -Through hole mount components :260 ℃ , 10s
产品料号编码原则-How to order
|
|
|
- 0 24X26
1 33X35
2 35X35
3 37X37
9 47X47 - PGA footprint
refnumber=Code - 0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
5 Gold 10 u" Gold flash
6 Gold 30 u" Gold flash - 0 7.40mm
1 10.1mm
2 5.2mm
3 14.35mm
4 5.35mm
5 4.1mm - Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
