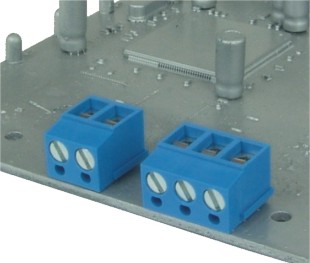

型号:TB-2 Interlock
产品描述 | |
型号/Part No.: | TB-2 Interlock |
间距/Pitch: | 5.0mm |
位数/Poles: | 2P,3P |
料号/Number: | TBxx01600000G |
详细信息请参阅pdf文件![]() | 网站图纸仅供参考,具体需求请联系业务。 |
产品介绍
电气性能-Electrical
安规类别/Safety category: | UL |
额定电压/Voltage rating: | 250V |
额定电流/Current rating: | 16A |
适用线经/Wire range: | |
单芯线经(AWG)/Solid wire(AWG): | 14 |
多芯线经(AWG)/Stranded wire(AWG): | |
最大锁紧扭力/Torque: | 3.5Lb-In |
螺丝规格/Screw: | M3 |
剥线长度/Wire strip length: | 6~7mm |
耐电压值(1分钟)/Withstanding Voltage: | 1.5KV |
安全认证/Safety Approval: | ![]() |
操作温度/Operating temperature: | -40℃ to +115℃ |
焊锡温度/Soldering temperature: | 250℃ ±10℃ /5Sec |
产品料号编码原则-How to order
|
|
|
- End Stackable
02 2 contacts
03 3 contacts
... ...
24 24 contacts
( pitch 5.0mm)
12 12 contacts
(pitch 10.0mm) - Pitch
0 5.00/.197"
1 10.00/.394" - Screw&Clamp
0 "+/-" combination type
W/Brass machined clamp
1 "-" slot type
W/Brass machined clamp - Color
0 Black
5 Green
(RAL6018/T)
6 Blue
8 Grey
(RAL7035/D)
C Green(RAL6018/U) - Tail length
0 4.4mm
1 3.8mm
2 3.5mm - 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant
(lead<4%)
In copper A lloy
