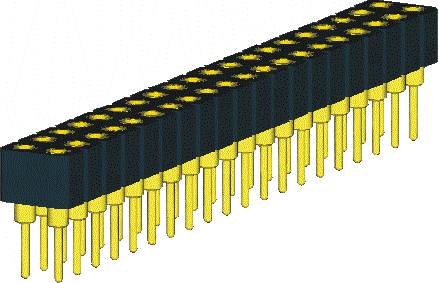

SZ DOUBLE ROW - 深圳市优联电子有限公司

产品描述
型号/Part No.:	SZ DOUBLE ROW
间距/Pitch:	2.0
位数/Poles:	0.-128
料号/Number:	SZxx10x10000G
详细信息请参阅pdf文件	网站图纸仅供参考，具体需求请联系业务。

产品介绍

Materials
Pin (outer sleeve) :            Brass,machined, CuZn38Pb2
Clip(contact 6 finger) :        Beryllium copper,heat treated
Plating(outer sleeve) :         Tin plated :  2um/80u"nickel,5um/200u"Tin
                                Gold plated: 2um/80u"nickel,Full gold flash
Plating (contact):              2um/80 u"nickel,gold or tin plating
Insulator body(housing) :       PPS.  UL94V-0

Electrical
Current  rating :                3 Amps/contact max.
Contact  resistance  :           ≦4m/Ω contact
Insulation  resistance :         ≧10000MΩat 500VAC
Rated  voltage  :                100 VRMS /150VDC

Mechanical
Operating temperature :       Gold plated:-55 ℃  to +125  ℃

(Continuous)                   -67 ℉   to +257   ℉

                                Tin plated:-40 ℃  to +105 ℃
Average insertion force with steel pin of: 0.46mm/0.018" ≦50g
Average withdrawal force with steel pin of 0.46mm/0.018" ≧ 15g
Mechanical life :               min.200

Environmental data
Solderability (IEC 60068-2-20. Ta)  :235  ℃, 2s
Resistance to soldering heat  (IEC 60068-2-20.  Tb) :
-Through hole mount components     :260℃ ,  10s

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Single row = 01 to 64
Double row = 02 to 128
0 Single row
1 Double row
0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
5 Gold 10 u" Gold flash
6 Gold 30 u" Gold flash
1 7.4mm
2 10.1mm
3 5.2mm
4 14.35mms
Customer's special
requirements
"0000~9999"
"0000"(standard)
Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
