产品描述 | |

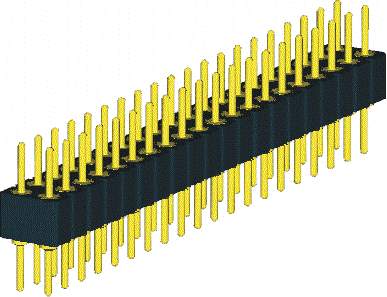

| 型号/Part No.: | S6 DOUBLE ROW |
| 间距/Pitch: | 2.0 |
| 位数/Poles: | 02-128 |
| 料号/Number: | S6XX10X00000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated: 2um/80u"nickel,Full gold flash
Insulator body(housing) : PPS. UL94V-0
Electrical
Current rating : 3 Amps/contact max.
Insulation resistance : ≧ 10000MΩat 500VAC
Rated voltage : 100 VRMS /150VDC
Mechanical
Operating temperature : Gold plated:-55℃ to +125℃
(Continuous) -67 ℉ to +105 ℉
Tin plated:-40 ℃ to +105 ℃
Environmental data
Solderability (IEC 60068-2-20. Ta) :235℃ , 2s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :260℃ , 10s
|
|
|
- Single row = 01 to 64
Double row = 02 to 128 - 0 Single row
1 Double row - 0 Tin 200 u"
1 Gold flash
2 Gold 10 u"
3 Gold 30u" - 0 10.0mm
- Customer's special
requirements
"0000~9999"
"0000"(standard) - Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
