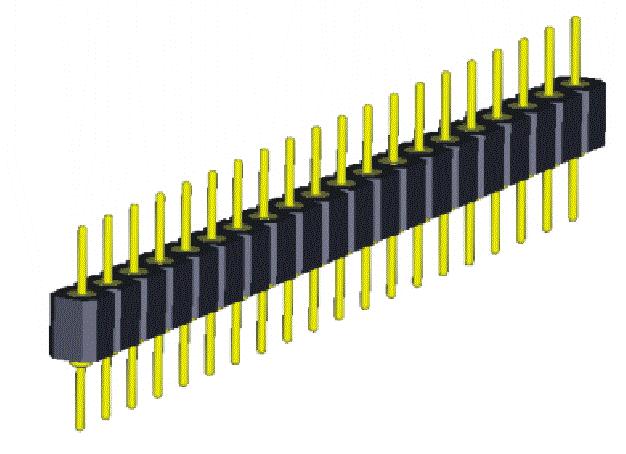

SG SINGLE ROW - 深圳市优联电子有限公司

产品描述
型号/Part No.:	SG SINGLE ROW
间距/Pitch:	1.778
位数/Poles:	01-32
料号/Number:	SGXX00X00000G
详细信息请参阅pdf文件	网站图纸仅供参考，具体需求请联系业务。

产品介绍

Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated: 2um/80u"nickel,Full gold flash
Insulator body(housing) : Glass filled thermoplastic polyester UL94V-0

Electrical
Current rating : 3 Amps/contact max.
Insulation resistance : ≧ 10000MΩat 500VAC
Rated voltage : 100 VRMS /150VDC

Mechanical
Operating temperature : Gold plated:-55℃ to +125℃

(Continuous) -67 ℉ to +105 ℉

Tin plated:-40 ℃ to +105 ℃

Environmental data

Solderability (IEC 60068-2-20. Ta) :235O C, 2s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :260O C, 10s

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Single row = 01 to 32p
16,20,24 (7.62/.300")
54 (15.24/.600")
28,32,42,48 (10.16/.400"&15.24/.600")
52,56,64,68 (10.16/.400"&15.24/.600")
64 (19.05/.750")
0 Single row
3 7.62/0.300"
4 10.16/0.400"
6 15.24/0.600"
7 19.05/0.75"
0 Open frame
2 Open frame w/o bar
0 Tin 200 u"
1 Gold flash
2 Gold 10 u"
3 Gold 30u"
0 10.0mm
Customer's special
requirements
"0000~9999"
"0000"(standard)
Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
