SO W/O BAR - 深圳市优联电子有限公司

产品描述

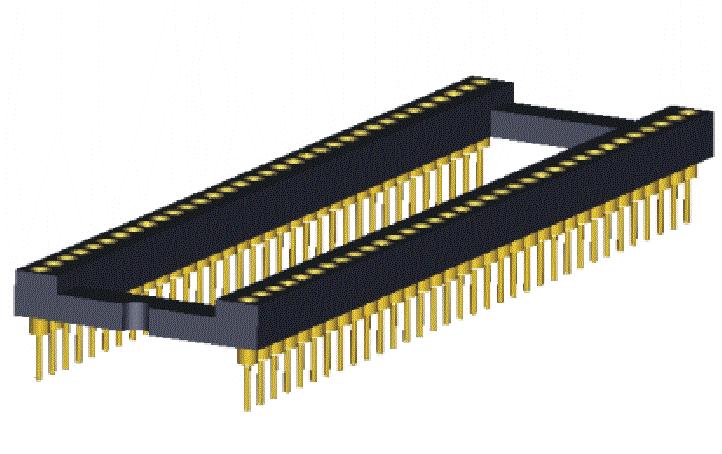

型号/Part No.:	SO W/O BAR
间距/Pitch:	1.778
位数/Poles:	01-32
料号/Number:	SOxxx2x00000G
详细信息请参阅pdf文件	网站图纸仅供参考，具体需求请联系业务。

产品介绍

Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 4 finger) : Beryllium copper ,heat treated or PHBZ
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated: 2um/80u"nickel,full gold
Plating clip(contact): 2um/80 u"nickel,gold or tin plating
Insulator body(black) : Glass filled thermoplastic polyester UL94V-0

Electrical
Current rating : 3 Amps/contact max.
Contact resistance : ≦4mΩ/contact
Insulation resistance : ≧10000M Ωat 500VAC
Rated voltage : 100 V_RMS / 150 V_DC

Mechanical
Operating temperature : Gold plated:-55℃ to +125℃
(Continuous) -67°F to +105° F
Tin plated:-40 ℃ to +105℃

Average insertion force with steel pin of: Φ0.43mm/0.017" < 250g
Average withdrawal force with steel pin of Φ0.43mm/0.017" >50g
Mechanical life : min.200

Application
Solderability
(IEC 68-2-54 Ta) :235℃, 5s Max
Resistance to soldering heat :
(IEC 68-2-20 Tb) :260℃, 5s Max

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Single row = 01 to 32p
16,20,24 (7.62/.300")
54 (15.24/.600")
28,32,42,48 (10.16/.400"&15.24/.600")
52,56,64,68 (10.16/.400"&15.24/.600")
64 (19.05/.750")
0 Single row
3 7.62/0.300"
4 10.16/0.400"
6 15.24/0.600"
7 19.05/0.75"
0 Open frame( Single row)
2 Open frame w/o bar
0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
0 7.4mm
1 10.1mm
2 5.2mm
3 14.35mm
4 5.35mm
Customer's special
requirements
"0000~9999"
"0000"(standard)
Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
