SU SINGLE ROW - 深圳市优联电子有限公司

产品描述

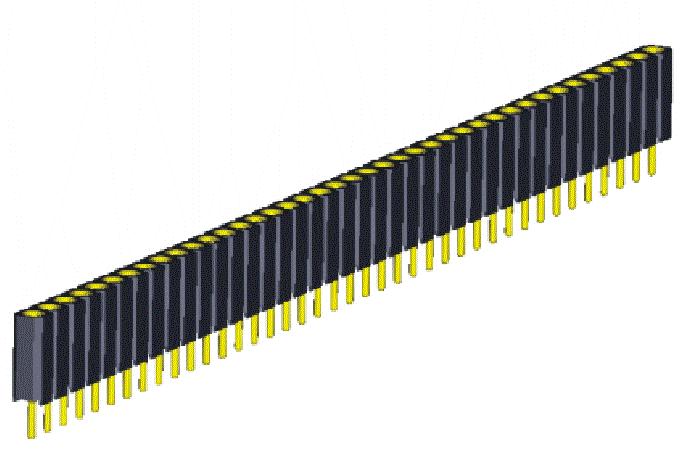

型号/Part No.:	SU SINGLE ROW
间距/Pitch:	2.54
位数/Poles:	01-40
料号/Number:	SUXX00X0XXXXG
详细信息请参阅pdf文件	网站图纸仅供参考，具体需求请联系业务。

产品介绍

Materials
Pin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 4 finger) : Beryllium copper ,heat treated or PHBZ
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Plating clip(contact): 2um/80 u"nickel,gold or tin plating
Insulator body(black) : PPS. UL 94V-0

Electrical
Current rating : 3 Amps/contact max.
Contact resistance : ∝4mΩcontact
Insulation resistance : ≠10000MΩat 500VAC
Rated voltage : 100 V_RMS / 150 V_DC

Mechanical
Operating temperature : Gold plated:-55℃ to +125℃
(Continuous) Tin plated:-40 ℃ to +105℃

Average insertion force: <140g

With steel pin of 0.66mm or SQ 0.64mm

Average withdrawal force: >25g

With steel pin of 0.66mm or SQ 0.64mm

Mechanical life: min.200 Compliant pin for solderless mount into P.C.B

Plated-thru holes:1.0mm+0.05/-0.00mm

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Single row = 01 to 40
Double row = 02 to 80
06,08,10,14,16,18,20,
22,24,28
20,22,24,28,32
24,28,32,36,40,42,48
0 Single row
1 Duble row
3 7.62/0.300"
4 10.16/0.400"
6 15.24/0.600"
7 Special4 rows
9 22.86/0.900"
0 Open frame
1 Closed frame
2 Open frame w/o bar
0 Gold flash Tin 200 u"
1 Gold 10 u" Tin 200 u"
2 Gold 30 u" Tin 200 u"
3 Tin 200 u" Tin 200 u"
4 Gold flash Gold flash
0 7 .43mm
1 7.91mm
2 4.82mm
3 5.20mm
4 7.50mm
5 4.68mm
6 14.35mm
7 11.5mm
8 25.9mm
Customer's special
requirements
"0000~9999"
"0000"(standard)
Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
