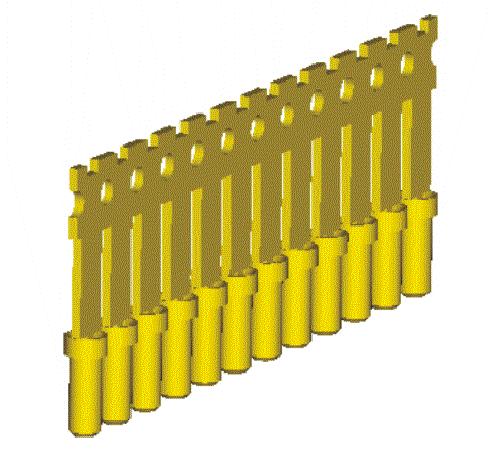

ST SERIES - 深圳市优联电子有限公司

产品描述
型号/Part No.:	ST SERIES
间距/Pitch:	2.54
位数/Poles:	01-50
料号/Number:	STXX0XXAXXXXG
详细信息请参阅pdf文件	网站图纸仅供参考，具体需求请联系业务。

产品介绍

Materials
Carrier : Brass

Pin (outer sleeve) : Brass, machined, CuZn38Pb2
Clip(contact 4/6 finger) : Beryllium copper ,heat treated or PHBZ
Plating(carrier) : Cu40~80u",Ni80~100u"
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Plating clip(contact): 2um/80 u"nickel,gold or tin plating
electrical
Current rating : 3 Amps/contact max.
Contact resistance : ≦4mΩcontact

Mechanical
Operating temperature : Gold plated:-55℃ to +125℃
(Continuous) -67 ℉ to +105 ℉

Tin plated: -40 ℃ to +105 ℃

Mechanical life : min.200

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Single row = 01 to 50

0 without pin
1 Gold flash Tin 200 u"
2 Gold 10 u" Tin 200 u"
3 Gold 30 u" Tin 200 u"
4 Tin 200 u" Tin 200 u"
5 Gold flash Gold flash
6 Gold 10 u"
0 Single row
A 4.82mm
B 4.2mm
C 7.43mm
D 3.85mm
E 4.0mm
0 Without plated
1 Nickel 100u"
0 7 .43mm
1 7.91mm
2 4.82mm
3 5.20mm
4 7.50mm
5 4.68mm
6 14.35mm
7 11.5mm
8 25.9mm
Customer's special
requirements
"0000~9999"
"0000"(standard)
Empty Non-environmental
G ROHS Compliant
(Lead<4%)
in copper alloy
F ROHS Compliant
(Lead<100ppm)
in copper alloy
