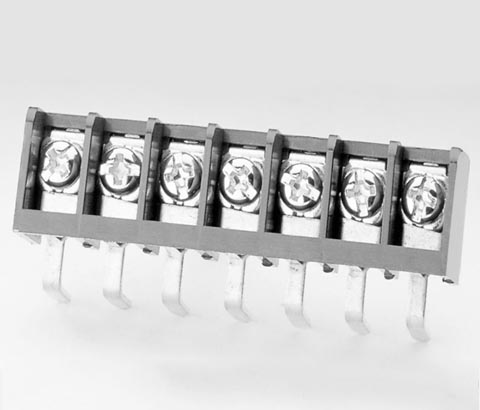

型号:YK334
产品描述 | |
型号/Part No.: | YK334 |
间距/Pitch: | 8.25 |
位数/Poles: | 2P -30P |
料号/Number: | YK334xx0xx00G |
详细信息请参阅pdf文件![]() | 网站图纸仅供参考,具体需求请联系业务。 |
产品介绍
电气性能-Electrical
安规类别/Safety category: | cULus CQC |
额定电压/Voltage rating: | 300V 300V |
额定电流/Current rating: | 20A 32A |
绝缘耐电压/Insulation WithstandsVoltage: | AC2500V/min |
绝缘阻抗/Insularion Resistance: | 1000MΩ or More at DC500V |
工作温度/Using Temperature Rang : | -40℃ to +115℃ |
螺丝锁紧值/Screw Torque Value: | 8.8 Lb-In |
适用线径/ Suitable Electric Wire: | 12 ~ 22AWG 12 ~ 22AWG |
安全认证/Safety Approval: | ![]() ![]() |
产品料号编码原则-How to order
|
|
|
- 11 Series
30 Series
40 Series
50 Series
60 Series
70 Series
90 Series
21 Series
31 Series
32 Series
41 Series
42 Series
51 Series
61 Series
22 Series
33 Series
44 Series
55 Series
66 Series
77 Series
88 Series
`` - 02
03
04
```
10
11
12
```
20
```
30
``` - 0 W/o flange & W/o cover
1 With flange & With cover
(only YK30/40/50/60/66/77)
2 W/o flange & With cover
(only YK30/40/50/60)
3 With flange & W/o cover - 0 Screw&Contacts plating G/F
1 Screw plating Ni&Contacts plating G/F
2 Screw plating G/F&Contacts plating Sn
3 Screw plating Ni&Contacts plating Sn
(standard) - 0 "@"logo
(standard)
1 "ANYTEK"
(standard) - Customer's
special
repuirements
"01~9900
stardard" - G ROHS
Compliant
(Lead<4%)
In copper
alloy
F ROHS
Compliant
(Lead<100ppm)
In copper
Alloy
