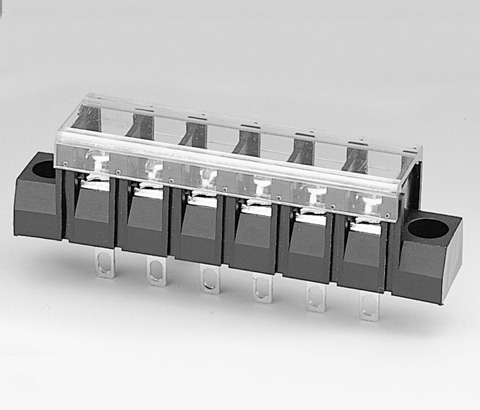

YK403-with cover - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	300V
额定电流/Current rating:	20A
绝缘耐电压/Insulation WithstandsVoltage:	AC2000V/min
绝缘阻抗/Insularion Resistance:	1000MΩ or More at DC500V
工作温度/Using Temperature Rang :	-40℃ to +115℃
螺丝锁紧值/Screw Torque Value:	7 Lb-In
适用线径/ Suitable Electric Wire:	12 ~ 22AWG
安全认证/Safety Approval:

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

11 Series
30 Series
40 Series
50 Series
60 Series
70 Series
90 Series
21 Series
31 Series
32 Series
41 Series
42 Series
51 Series
61 Series
22 Series
33 Series
44 Series
55 Series
66 Series
77 Series
88 Series

``
02
03
04

```
10
11
12

```
20

```
30

```
0 W/o flange & W/o cover

1 With flange & With cover
(only YK30/40/50/60/66/77)

2 W/o flange & With cover
(only YK30/40/50/60)

3 With flange & W/o cover
0 Screw&Contacts plating G/F
1 Screw plating Ni&Contacts plating G/F
2 Screw plating G/F&Contacts plating Sn
3 Screw plating Ni&Contacts plating Sn
(standard)
0 "@"logo
(standard)
1 "ANYTEK"
(standard)
Customer's
special
repuirements
"01~9900
stardard"
G ROHS
Compliant
(Lead<4%)
In copper
alloy
F ROHS
Compliant
(Lead<100ppm)
In copper
Alloy
