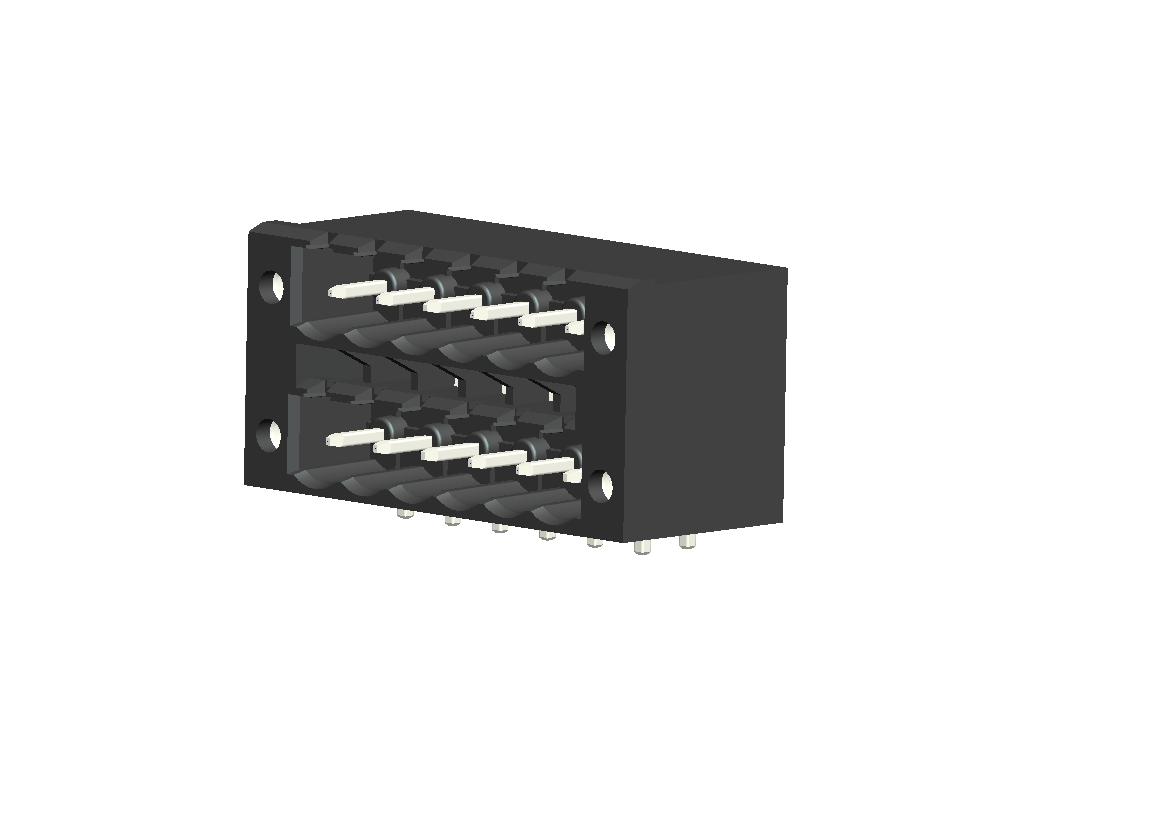

型号：KE 5.0 With Flange Right angle THR type
产品描述 | |
| 型号/Part No.: | KE 5.0 With Flange Right angle THR type |
| 间距/Pitch: | 5.0mm |
| 位数/Poles: | 2*2p~2*24p |
| 料号/Number: | KExx72010000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 300V |
| 额定电流/Current rating: | 12A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | |
| 多芯线经（AWG）/Stranded wire(AWG): | |
| 最大锁紧扭力/Torque: | |
| 螺丝规格/Screw: | |
| 剥线长度/Wire strip length: | |
| 耐电压值（1分钟）/Withstanding Voltage: | 1.6KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -45℃ to +120℃ |
| 焊锡温度/Soldering temperature: | 280℃/10Sec |
产品料号编码原则-How to order
|
|
|
- Solid Block
04:02x02 contacts
06:02x03 contacts
... ...
48:02x24 contacts - 7 5.0/.197"
- 2 With flange
- 0 Black
- 1 Right angle
- 000 0 THR TYPE (Standard)
Any special item by customer request,
please contact sales department - G RoHS compliant
(lead<4%)
In copper A lloy
