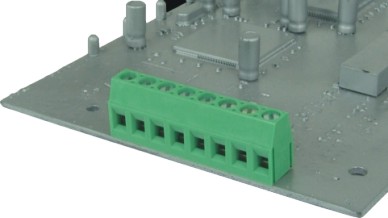

VI-180D(Solid block) - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	300V
额定电流/Current rating:	16A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	12-28
多芯线经（AWG）/Stranded wire(AWG):	12-28
最大锁紧扭力/Torque:	3.5 Lb-In
螺丝规格/Screw:	M3
剥线长度/Wire strip length:	6~7mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	250℃±10℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

Solid Block 04 4 contacts
05 5 contacts
… …
24 24 contacts
(pitch:5.08)
12 12 contacts
(pitch:10.16)
2 5.08/.20"
3 10.16/.40"
0 "-/+"Combination type
W/Brass Machined Terminal
1 "-"Slot type
W/Brass Machined Terminal
0 Black
5 Green (RAL 6018/T)
6 Blue
8 Grey (RAL7035/D)
C Green (RAL 6018/U)
3 90D wire inlet
(with cover)-solid block
4 180D wire inlet
(with cover)-solid block
5. 180D wire inlet
(without cover)-solid block-solid block
000 0 Standard

Any special item by customer request,
please contact sales department
G RoHS compliant
(lead<4%)
In copper A lloy

H RoHS compliant
(lead<1000ppm)
In copper A lloy
