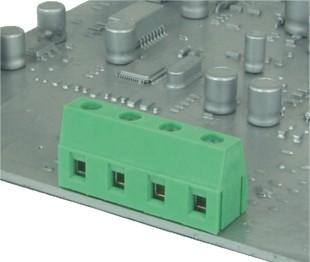

TI-Solid block - 深圳市优联电子有限公司

产品介绍

电气性能-Electrical

安规类别/Safety category:	cULus
额定电压/Voltage rating:	300V
额定电流/Current rating:	10A
适用线经/Wire range:
单芯线经（AWG）/Solid wire(AWG):	12-22
多芯线经（AWG）/Stranded wire(AWG):	12-22
最大锁紧扭力/Torque:	3.5 Lb-In
螺丝规格/Screw:	M2.5
剥线长度/Wire strip length:	6~7mm
耐电压值（1分钟）/Withstanding Voltage:	1.6KV
安全认证/Safety Approval:
操作温度/Operating temperature:	-40℃ to +115℃
焊锡温度/Soldering temperature:	250℃±10℃ /5Sec

产品料号编码原则-How to order

XX
Poles

X
Pitch

X
Screw&Clamp

X
Color

End stackable
02 2 contacts
03 3 contacts
… …
16 16 contacts
(pitch:7.62)
08 08 contacts
(pitch:15.24)
4 7.62/.30"
5 15.24/.60"
0 "-/+"Combination type
W/Brass Machined Clamp
1 "-"Slot type
W/Brass Machined Clamp
4 "-/+"Combination type
W/Steel Stamping Clamp
5 "-"Slot type
W/Steel Stamping Clamp
0 Black
5 Green (RAL 6018/T)
6 Blue
8 Grey (RAL7035/D)
C Green (RAL 6018/U)
0 Stackable
A Solid block
(only 5.0&7.62 pitch)
000 0 Standard

Any special item by customer request,
please contact sales department.
G RoHS compliant
(lead<4%)
In copper A lloy

H RoHS compliant
(lead<1000ppm)
In copper A lloy
