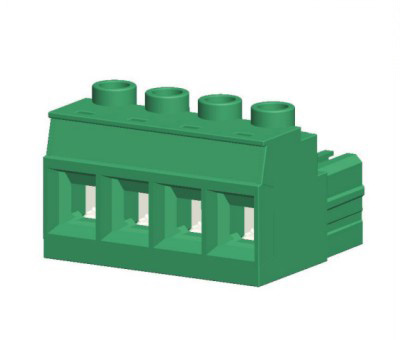

型号：KX 15.0 Without flange
产品描述 | |
| 型号/Part No.: | KX 15.0 Without flange |
| 间距/Pitch: | 15.0 |
| 位数/Poles: | 2p~10p |
| 料号/Number: | KXxxC1500000G |
详细信息请参阅pdf文件 | 网站图纸仅供参考，具体需求请联系业务。 |
产品介绍
电气性能-Electrical
| 安规类别/Safety category: | cULus |
| 额定电压/Voltage rating: | 600V |
| 额定电流/Current rating: | 115A |
| 适用线经/Wire range: | |
| 单芯线经（AWG）/Solid wire(AWG): | 2-20AWG |
| 多芯线经（AWG）/Stranded wire(AWG): | 2-20AWG |
| 最大锁紧扭力/Torque: | 36.5 |
| 螺丝规格/Screw: | M5 |
| 剥线长度/Wire strip length: | 19-20mm |
| 耐电压值（1分钟）/Withstanding Voltage: | 2.2KV |
| 安全认证/Safety Approval: |  |
| 操作温度/Operating temperature: | -40℃ to +115℃ |
| 焊锡温度/Soldering temperature: |
产品料号编码原则-How to order
|
|
|
- Solid Block
02 2 contacts
03 3 contacts
...
10 10 contacts - C 15.0/.591"
- 1 "-"Slot type
W/Steel Stamping Clamp
2 "*"Slot type
W/Steel Stamping Clamp - 0 Black
5 Green
(RAL 6018/T)
6 Blue
8 Grey
(RAL 7035/D) - 0 Without flange
- 000 0 Standard
Any special item by customer request,
please contact sales department. - G RoHS compliant(lead<4%)
In copper Alloy
H Rohs compliant
(lead<1000ppm)
In copper Alloy
